Advanced productivity for high-volume scanning
For organisations looking for high-productivity volume scanning, faster speeds alone are not the whole story – overall real-life throughput is the key metric.
The robust fi-7800 production scanner offers reliable, high-speed results and minimises downtime, while our maintenance features allow you to reduce time spent on scheduled servicing.
State of the art document feeding technology handles even mixed batches of paper types, formats, thicknesses, materials, sizes and volumes, boosting the efficiency of your employees and the scanning process by saving time sorting and separating batches.
User-friendly design makes for a more comfortable operating experience and our industry-leading imaging technology produces consistent output quality.
We are passionate about improving performance, whilst maintaining the highest levels of precision. That’s why our scanners are developed and manufactured at the ProDes Centre in Ishikawa, Japan – our hub for innovation and design. To uphold this reputation of reliability and technical excellence, each scanner undergoes exhaustive product testing from highly trained and certified staff.
The fi-7800 and fi-7900 deliver the complete scanning solution. A combination of our market-leading scanner, software and service give you everything needed for a more productive system and more productive people, allowing you to focus more on your business and less on your technology.

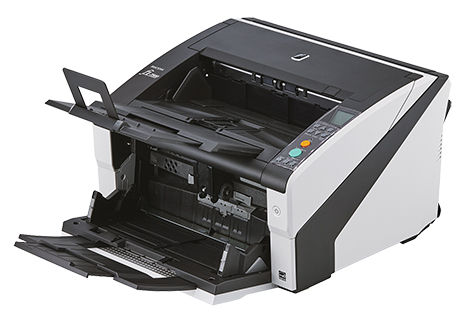

Ricoh Image Scanner fi-7800
Technical Specification
| Product Name | fi-7800 | |
|---|---|---|
| General | Scanner Type | Automatic Document Feeder (ADF) / Manual Feed, Duplex MID-VOLUME PRODUCTION Scanner |
| ADF Capacity*1 | 500 x A4: 80 g/m2 500 x Letter 20 lb |
|
| Scanning Colour Modes | Colour, Greyscale, Monochrome, Automatic Detection (Colour / Greyscale / Monochrome). | |
| Optical Resolution | 600 dpi | |
| Image Sensor Type | Colour Charge Coupled Device (CCD) x2 (Front x1, Back x1) | |
| Light Source | White LED Array x4 (Front x2 & Back x2) | |
| Interface | USB 2.0 / USB 1.1 Port (Type B Connector) | |
| Scanning Speed*2 | A4 Landscape: | Simplex 110 ppm / Duplex 220 ipm @ 200 / 300 dpi (Colour*3 /Greyscale*3/Monochrome*4) |
| A4 Portrait: | Simplex 90 ppm / Duplex 180 ipm @ 200 / 300 dpi (Colour*3 /Greyscale*3/Monochrome*4) |
|
| Paper Handling | Standard Sizes | A3, A4, A5, A6, B5, B6, Business Card, Post Card, Letter, Double Letter, Legal and Custom Size. |
| Custom Sizes | Maximum: 304.8 x 431.8 mm (12 x 17 in.) / Minimum: 52 x 74 mm (2 x 3 in.) | |
| Paper Weight (A4 to A5 Size) | 20 to 209 g/m2 (5.4 to 56 lb) | |
| Paper Weight (Less than A5 Size/ Over A4 Size) | 41 to 209 g/m2 (11 to 56 lb) | |
| Long Paper Scanning*5 | 5,588 mm (220 in.) | |
| Expected Daily Volume*6 | 100,000 sheets | |
| Paper Separation Method | Brake Roller / Separation Roller | |
| Multifeed Detection | Overlap detection (3x Independently configurable Ultrasonic sensors: L/C/R), Length detection | |
| Paper Protection | Lag detection | |
| Advanced Features | Stacking Control, Automatic Separation Control, Low-speed Feed Mode, intelligent Multi-Feed Function, Detection of document outside of scannable area. | |
| Image Processing | Image Processing Features | Multi image output, Automatic color detection, Automatic rotation, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal, Automatic profile selection |
| Output Resolution*7(Colour / Greyscale / Monochrome) | 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*8 | |
| Output Format | Colour: 24-bit, Greyscale: 8-bit, Monochrome: 1-bit | |
| Output Filetypes | PDF, Searchable PDF, PDF/A, TIFF, Multi-Page TIFF, Bitmap, JPEG, JPEG2000 | |
| Power | Power Requirements | AC 100 to 240 V ±10 % |
| Power Consumption: Operation Mode | 200 W or less | |
| Power Consumption: Sleep Mode | 3.2 W or less | |
| Power Consumption: Auto Standby (Off) Mode | Less than 0.3 W | |
| Environmental & Regulatory Compliance | ENERGY STAR®, RoHS | |
| Operating Environment | Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Operating Humidity Range | 20% - 80% (non-condensing) | |
| Chassis Characteristics | Device Colour | Black / BL-Grey |
| Device Dimensions (Height x Width x Depth) | 460 x 430 x 310 mm (18.1 x 16.9 x 12.2 in.) with hopper closed | |
| Device Weight (approx) | 32 kg (70 lb) or less | |
| PC System Requirements*9 | Operating Systems | Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2 |
| CPU | Minimum: Intel® Pentium® 4 1.8 GHz or higher. Recommended: Intel® Core i5 2.5 GHz or higher. |
|
| Installed RAM | Minimum: 2 GB or more. Recommended: 4 GB or more. |
|
| USB Port | Minimum: USB 1.1 Recommended: USB 2.0 |
|
| Storage Space | PaperStream IP: 1 GB or more (+1 GB if using 2D Barcode for PaperStream) PaperStream Capture: 10 GB or more + sufficient storage space for scanned images |
|
| Display Resolution | Minimum: 1024 x 768 Pixels or higher. Recommended: 1920 x 1080 Pixels or higher. Font Display Size: Up to 125% |
|
| Country of Origin | Designed & Manufactured in Japan. | |
| 1 Year Standard Warranty | Onsite Repair: Next Business Day Response +1 Preventative Maintenance Visit. Includes spare parts, labour & travel costs. |
| Package Contents | ||
|---|---|---|
| Item | Setup DVD | Compatibility |
| fi-7800 | PaperStream IP driver (TWAIN/TWAIN x64/ISIS) | Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2 |
